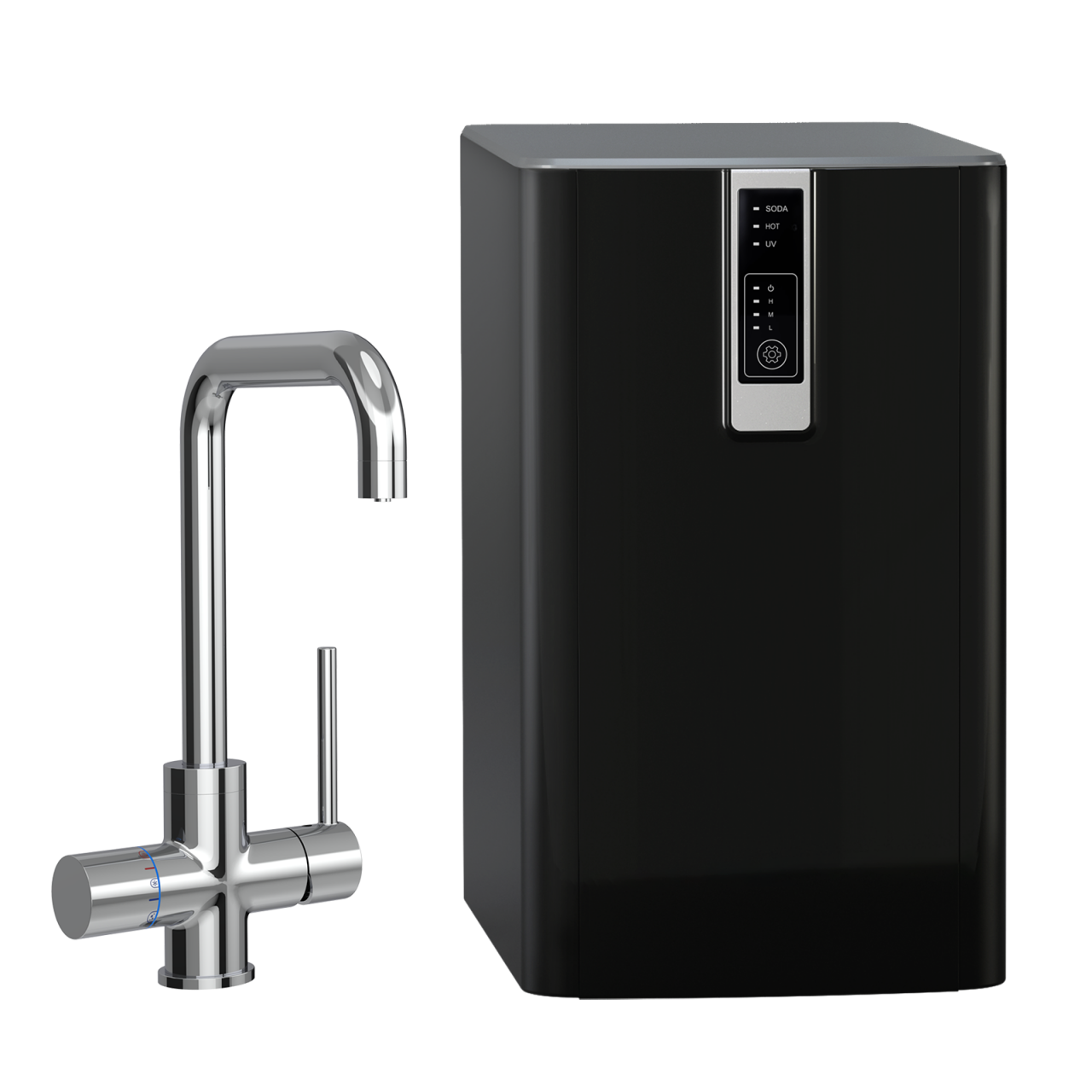

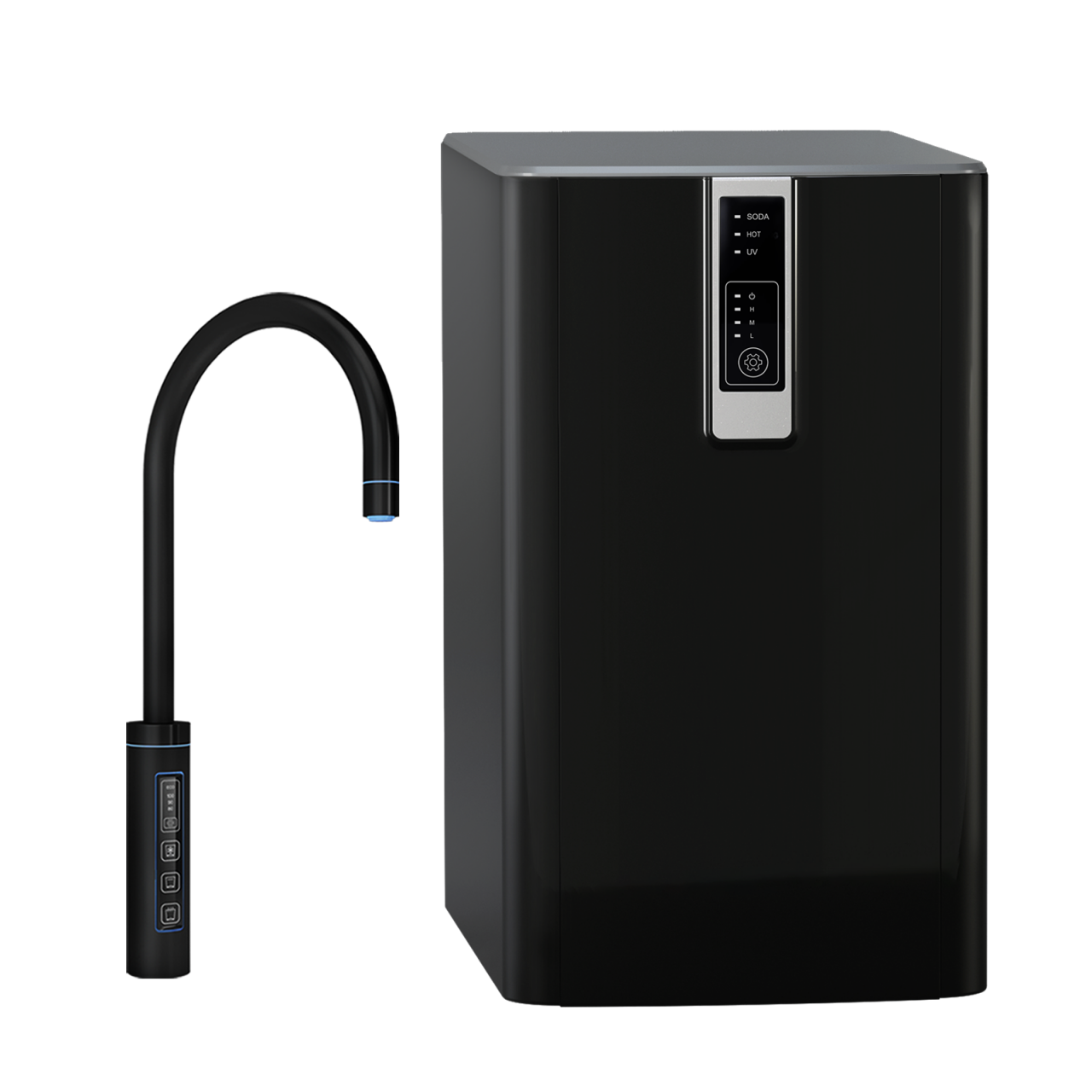

M104UL
M104UL
M104UL
M104UL
Under Counter
cold water
sparkling water
hot water
ambient water
safety lock
Energy Saving
Leak Detector
Filtration System
Back
M104UL
cold watersparkling waterhot waterambient watersafety lockEnergy SavingLeak DetectorFiltration System
.jpg)
Large Capacity Hot Water Tank
Large hot water tank to deliver 1.2 liter of 95oC hot water after each reheating.
The setting button on the panel is for changing the maximum heating
temperature of hot water according to the altitude of the location to prevent over-boiling.
H: Maximum temperature (98o/96o celsius)
M: -2 degree from maximum temperature
L: -5 degree from maximum temperature
.png)
.png)

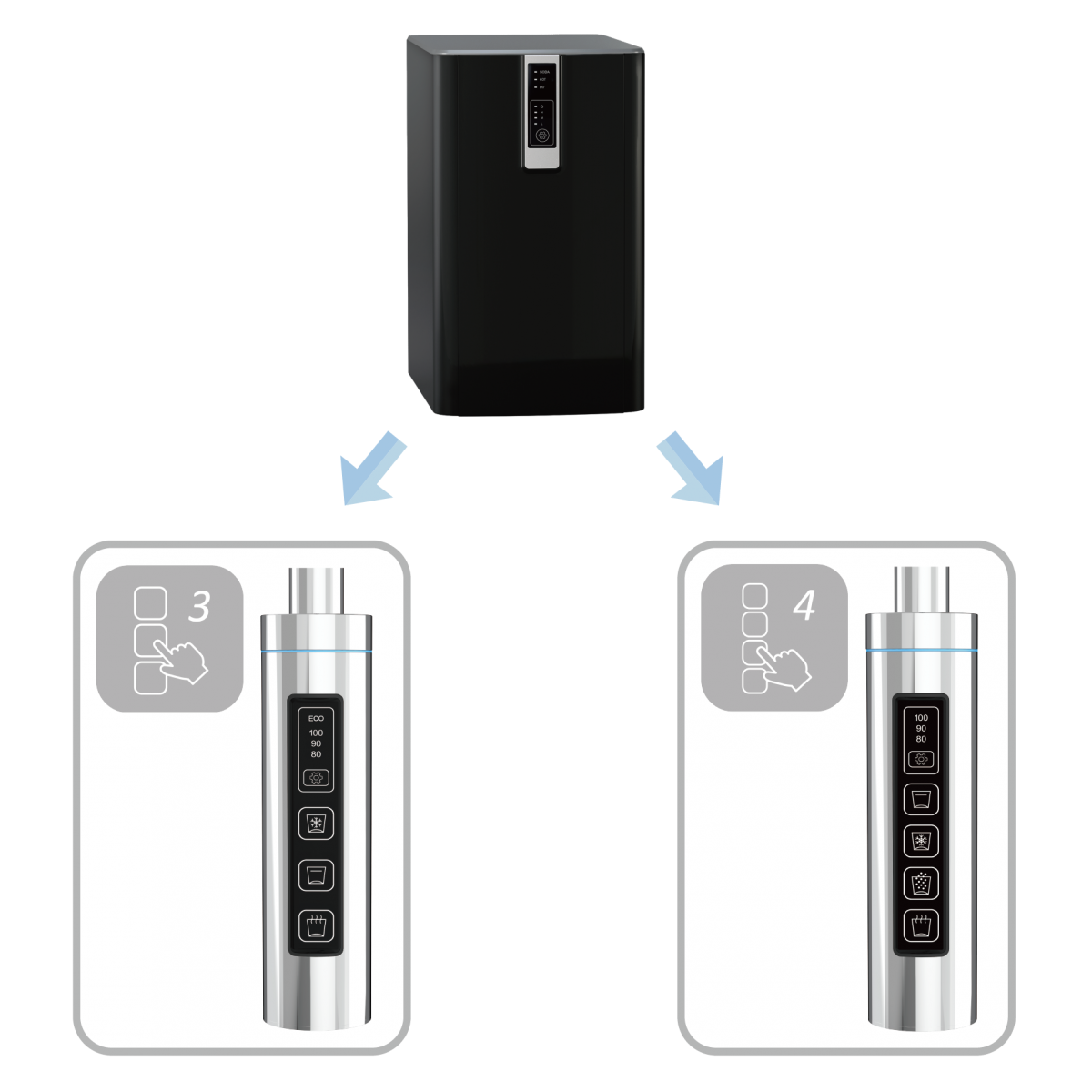

Work for 3 or 4 type water option faucet
4 water option: cold/hot/ambient/sparkling
3 water option: cold/hot/sparkling, cold/ambient/sparkling, cold/hot/ambient
| Model | M104UL |
|---|---|
| Size | 23(W) x 40(D) x 39(H) cm |
| Color | White/Silver, Black/Silver |
| Water options | Cold/Hot/Sparkling, Cold/Ambient/Sparkling, Cold/Hot/Ambient |
| Chilling capacity | up to 20 liters per hour |
| Hot water capacity | Hot tank 2.3 liter |
| Sparkling tank capacity | 3.5 liter |
| Voltage | AC 110v / 220v |
| Power consumption | Hot water 1000W / Cold Water 100W |
| Working inlet water pressure | 16 to 80 psi |
| Water/CO2 inlet pipe size | 1/4 inch (6.35 mm) |
