Under counter

M102U


Cold water
Sparkling Water
Hot water
ambient water
Safety lock
Energy Saving
Leak Detector
Water
Filtration
Back

The Tool-free Twin Filter



(optional feature for cold/ambient/sparkling model)

Tool-free twin filter system which allows users to replace filters in less than 20 seconds.



1st Stage - Carbon

Reduces chloramines, chlorine and other materials that cause bad taste and odors



2nd Stage -Nano-Silver Carbon

Absorbs chemicals, bad smell, heavy metals/pesticides and eliminates bacteria from the water





Swan Neck Faucet



-Stainless steel: SUS304

-Touch operation panel with blue LED light

- LED light flashes and beeps as warning of system malfunction

- High quality swan neck faucet included
- Nano silver carbon/carbon block filter/scale control filter available for selection

Faucet Selections Based On Your Demands

Faucet models available:

F101-C

F101-NC

F101-U

F101-NU

F201-U

F201-C



Additional UV sterilization is available

The external UV sterilizer can be installed at the place between outlet faucet and water dispenser to eliminate the bacteria from internal pipes and sparkling/cold water tanks. It makes sure that each cup of water is clean and tasty.



Click here to view External UV sterilizer.

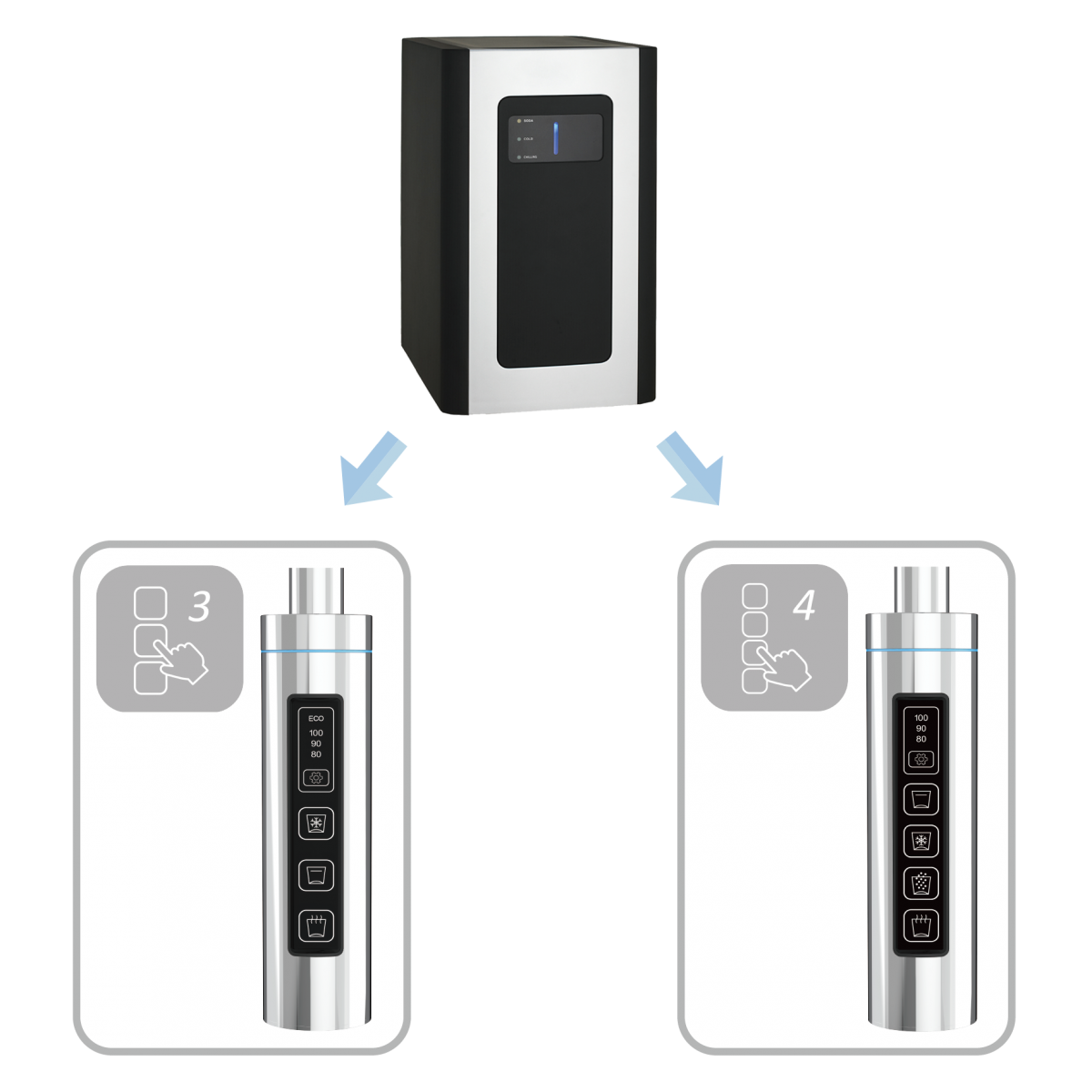

Work for 3 or 4 type water option faucet

4 water option: cold/hot/ambient/sparkling
3 water option: cold/hot/sparkling, cold/ambient/sparkling, cold/hot/ambient

Model M102U
Size 23(W) x 39(D) x 39(H) cm
Color White/Silver, Black/Silver
Water options Cold/Hot/Sparkling, Cold/Ambient/Sparkling, Cold/Hot/Ambient
Chilling capacity up to 20 liters per hour
Heating capacity up to 12 liters per hour
Sparkling tank capacity 3.5 liter
Voltage AC 110v / 220v
Power consumption Hot water 800w / Cold water 100w
Working inlet water pressure 16 to 80 psi
Water/CO2 inlet pipe size 1/4 inch (6.35 mm)
